Solar Power in New Hampshire - Part 1

In states such as Massachusetts, New Jersey, and California, there is a remarkable roll-out of solar energy generation operations underway, both large- and small-scale, driven by generous solar power incentives as well as improvements in technology and the falling prices of solar panels. In some respect, NH is arriving late to the game, but, as I will highlight in future posts, there are positive steps being taken. In my next series of posts, I discuss various aspects of solar energy, how NH is benefiting from its 2500 hours/year of sunshine, and how the state could further tap into this solar energy potential.

There are several ways to harness the energy of the sun:

• Solar thermal uses the heat of the sun to warm up water so that it can be used for showers and other hot-water applications like washing.
• Concentrating solar power concentrates the energy of sunlight by mirrors onto a focal point. The focused sunlight heats a fluid, which is used to generate steam, which then turns a turbine to generate electricity.
• Photovoltaic generation of electricity through the use of solar panels is the most widely used and most promising approach to tap into the sun’s energy. Its application is growing exponentially in many countries and it represents one of the most significant resources of renewable energy.

Each of these applications requires sunny days and the direct radiation of the sun, so let’s start with some simple measures of solar radiation. The state of New Hampshire has ~2500 hours of sunshine and 90 clear days per year. In comparison, Nevada has about 160 clear days annually and about 3600 hours of sunshine. For a more exact determination of the power available from the sun, we use the concept of irradiance, which is a measure of sunlight intensity on one square meter of horizontal surface at a point in time. This, of course, changes during the day: it is low in the early morning; at a maximum at noon when the sun is directly overhead; and then tapers off towards evening. It also changes depending on the location, time of year, and amount of cloud cover. The typical average peak irradiance at noontime is 1000 watts per square meter (W/m2) for the planet. This value is referred to as the peak sun value. Measurements of irradiance averaged over 30 years for two days in June appear in the figure below. The yellow June 8th data show an essentially cloudless day, whereas the grey June 18th data show a day with a considerable amount of cloud cover. The drop-off in irradiance levels with cloud cover is significant.

 Source: PVWatts

Irradiance is a measure of the intensity or power of sunlight at a point in time, but what we are really interested in is the energy that we can harvest over a period of time. In an earlier post, I explained the difference between power and energy. Energy is the amount of power expended over a period of time (an hour or a day). The mathematical relationship between Energy and Power is given by the simple formula:

Energy = Power x Time.

In the solar field, we determine the energy that can be potentially harvested over a day by calculating the area under the irradiance curve, such as the yellow area in the figure above. This measure of energy over a day is termed insolation; it is measured in kilowatt hours per square meter (kWh/m2). Another measure of insolation is to calculate how many hours of peak sun (with a fixed irradiance of 1000 W/m2) will deliver the same energy as the sum of the varying (irradiation x time) values over the day. The hours of peak sun per day is a particularly useful measure and is extensively used in the solar energy field to determine the daily output of electricity from solar panels. Insolation data are often available in tables of peak sun hours for different times of the year and different locations around the world. For example, the figure below shows peak sun hours for Concord, NH, at different times of the year. On average, the annual peak sun value for Concord is 3.9 hours.

Source:NREL

These insolation measures are for a panel lying flat on the ground, but that is not the normal orientation for most solar projects. In the northern hemisphere, solar panels are angled towards the south, so as to capture as much sunlight as possible as the sun rises and sets in the southern skies. Typically, the mounting angle of the panels is equivalent to the latitude of the location: panels in Concord, NH are ideally oriented at an angle of 43o from the horizontal. With the correct mounting angle, the average annual insolation value increases from 3.9 to 4.6 peak sun hours, an 18% improvement over a horizontally mounted panel. This is the average improvement for a fixed-angle array, but further improvements can be achieved by adjusting the orientation of the panels during the year. In winter, panels should have a higher mounting angle to capture the sunlight from the sun sitting lower in the southern skies and, in summertime, the panels should lie flatter to catch the rays of the sun when it sits high in the sky during the day.

Some solar arrays are very sophisticated, with intricate motor drives and control systems that can follow the sun from east to west during the day and also make small daily adjustments in the tilt angle to follow the sun’s seasonal orientation. Dual-axis systems, such as these, can boost the insolation by about 28% or more over a fixed-angle array; however, these systems are expensive and maintenance issues with the drives and controllers often occur. Solar panels are pretty cheap these days, so a 28% gain in efficiency can rather be captured by simply adding more panels and avoiding the maintenance headaches. For this reason, most solar systems are simple fixed-angle systems.

Let’s return for a moment to measures of solar insolation. We have been using units of peak hours, which are particularly useful when calculating the energy that a photovoltaic (PV) panel will generate. Another useful unit is the direct measure of energy per square meter, i.e., kilowatt hours per square meter, kWh/m2. We determined above that the average for a Concord, NH, array mounted at 43o was 4.6 peak sun hours. So, at a peak sun value of 1000 W/ m2, we can calculate the average annual insolation value as:

4.6 hours/day x 1 kW/m2 x 365 day/year = 1679 kWh/year.

Of course, higher irradiation values created by improved mounting angles lead to higher annual insolation values. To gauge the amount of solar energy that can be harvested, maps of annual solar insolation have been prepared for the entire planet. The map below shows the average annual insolation, in kWh/m2, for the USA.

It is clear that New Hampshire is not subjected to large amounts of high-intensity solar irradiation. The choice areas lie in the Southwest, but there is still sufficient solar radiation here in the Northeast to make it worthwhile harvesting.

In an earlier post, I noted that annual electricity consumption for New Hampshire was ~11 million megawatt hours/year (MWh/y). Using the average insolation value of 1680 kW/m2 as determined above, we can roughly calculate how much land area would be needed to generate New Hampshire’s annual electricity demand using the following assumptions:

PV panel efficiency: 15% (a typical value for modern panels)
Electrical and storage system losses: 50%
Panel coverage of land area: 50%

Based on these assumptions, we can determine that an area of approximately 67 square miles would be needed to generate sufficient energy to meet New Hampshire’s annual electricity needs—an area approximately 8 miles by 8 miles. This hardly seems much in state with a land area of 9350 sq. miles. The thought that it would only require ~0.7% of NH’s land area to generate all of the state’s electricity needs is an intriguing one; however, it is important to put this fun-to-do order-of-magnitude calculation into perspective and consider the technical and economic feasibility of this idea.

Let’s start with the size of the plant. Very large solar plants are being built today. There are several in the 500 MW range in the US and some larger ones in India and China. As of the date of this post, the largest solar power plant in the US is the BHE Renewables Solar Star operation in Antelope Valley, California. This is a 579 MW AC output plant, capable of generating ~1, 800,000 MWh of electricity per year or about 16% of NH’s needs. It uses 1.7 million solar panels and is located on 5 sq. miles of land. Technically, large-scale solar plants are feasible, but the costs are high. The cost for a 550 MW plant in California was reported to be $ 2.4 billion. The largest solar farm in the world is presently the Kurnool Ultra Mega Solar Park in Andra Pradesh, India. This monster has over 4 million panels, a nameplate capacity of 1000 MW, a cost about $1.1 billion, and covers a land area of 9.3 sq. miles. It is reported to produce 2.6 billion kWh of electricity annually, which is 24% of NH annual needs.

Cost is an issue, but the bigger problem associated with solar power is that it is an intermittent and variable resource. Unlike a traditional nuclear, fossil fuel, or hydroelectric power plant that can vary its output day or night (within a certain range), a solar resource can only produce energy during the daylight hours and is subject to the whims of cloud cover and passing storms – during which output can drop considerably. To fully utilize solar energy, we need electricity storage in batteries to provide power for the nighttime and when it is cloudy. Unlike grid-scale electricity generation from large PV plants, grid-scale battery storage is still in its infancy. It is complicated and very expensive. To date, the largest grid-scale battery-based storage operation is near San Diego in California – a 30 MW unit with storage of 120 MWh. To store just one day’s worth of electricity for NH would require some 30,000 MWh of storage. This is 250 times the capacity of the largest existing storage plant and is simply not technically and economically feasible at this time. In many respects, generation of electricity from sunlight these days is fairly straightforward; the storage aspect is the bigger challenge that we face this century.

My back-of-the-envelope cost estimates yield a $10 billion price tag for a solar and storage operation to supply all of NH's electricity needs and one full day of storage. This is certainly cheaper than building a nuclear power station and I am confident that with the falling cost of storage and solar panels, we will, within the next decade, be building solar and storage plants of this size. Perhaps one of these will be in NH.

This is the first in a series of posts about solar power and its application in NH. I trust that I have given you a sense of the resource available and the scale that is needed to harness it, but also a sense of the technical challenges, complexities, and costs involved in developing this resource.

Until next time, remember to turn off the lights when you leave the room.

Mike Mooiman

Franklin Pierce University

mooimanm@franklinpierce.edu

Click on this link to receive email notifications for Energy in New Hampshire updates

New Hampshire's Renewable Portfolio Standard – Part 4

My last three posts have looked into various aspects of NH’s Renewable Portfolio Standard (RPS). I presented the basic workings of the program,  discussed renewable energy credits (RECs) and REC prices and, most recently, looked at money flow and costs of the RPS program.  The program originally included a steady increase in the renewable energy (RE) requirement year on year; however, to reduce costs to electricity customers, some big adjustment in the requirements have been made over time to accommodate changing market conditions and the non-availability of RECs in specific classes. This post discusses the implications of some of those changes as NH gets back on track to meet its 2025 RPS goals.

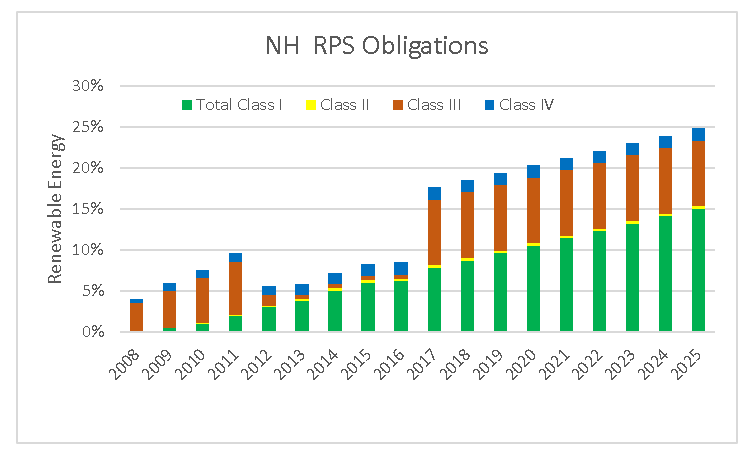

As noted previously, there are four classes of renewable energy in the NH RPS. Class I is for newer RE technologies, such as wind or ocean energy, and RE operations that have been commissioned since 2006. Class II is a special carve out for solar power. Classes III is for the older biomass operations, which include electricity generated from burning landfill methane or wood, and Class IV is for smaller hydro operations that were established prior to the end of 2005.

NH has an important forestry industry and eight wood-burning plants that generate electricity. Right from the start of the RPS program, a large Class III requirement  was put in place to support these wood-burning plants; however, from 2012 to 2016, the amount of RE from Class III was significantly curtailed to cope with the shortage of Class III RECs and to mitigate the cost of the shortage for ratepayers. The reason for the shortage was that the Connecticut (CT) REC market had high prices and had sucked in RECs from all over New England, including NH Class III RECs that qualified as CT Class I RECs. With limited NH Class III available, electricity suppliers would have been compelled to pay the Alternative Compliance Payment (ACP) instead, increasing costs to ratepayers.

In 2016 the NH Public Utilities Commission (PUC) held hearings on the topic and  were informed  that the REC market had changed, that CT REC prices had decreased, and there was testimony from the biomass coalition that sufficient Class III RECs would be generated and be available for purchase. Electricity suppliers weren’t convinced and, after deliberation, the PUC commissioners ruled to return the Class III requirement from 0.5 to 8% to put NH back on track to meet its RE ramp-up to meet the 2025 obligation, as shown in the chart below.

For 2017, the specific RE class requirements and associated ACPs are presently as follows:

Given this big ramp from 0.5% to 8%, I though it worth taking a closer look at the Class III REC market and the availability of biomass RECs to meet this requirement.

Let’s start with some basic calculations. Approximately 11,000,000 MWh of electricity are supplied annually to ratepayers and customers in NH. It follows that an 8% Class III requirement therefore needs to provide 880,000 MWh of electricity from pre-2006 biomass operations. The REC requirement is therefore also 880,000 MWh. That is a boatload of RECs – and the question is: Can that many RECs be generated from this source?

I then found the list of registered Class III providers at the NH PUC, which is provided below.

Closer examination of this list brings to light the following:

• There are 20 registered Class III operations, providing a total generating capacity of 137 MW. Most of the operations (13 of 20) are from out of state.
• Only three of NH’s eight wood-burning plants (highlighted in green) are registered as Class III producers: the rest, such as the large Berlin biomass operation, appear to be registered as Class I producers.
• Of the 137 MW of Class III capacity available, the NH wood-burning plants only provide 56 MW, or 41% of the total capacity: the rest comes from in-state and out-of-state landfill methane operations.
• If we include the NH landfill methane operations (highlighted in grey) with the NH-based wood plants, only 68 MW, or 49% of the total capacity, is provided by NH-based plants: the rest is from out-of-state landfill gas operations in RI, NY, and VT.

I found all of this surprising because my understanding is that the original intent of including the Class III category in the NH RPS was to support NH biomass operations.  Instead, in its present form, it seems to be doing a lot to support out-of-state landfill operations.

Let’s return briefly to some calculations. If we take that 137 MW of Class III generating capacity and assume that the generating plants are operational for 90% of the time (see my I’ve Got the Power post for a discussion of capacity factor and the difference between generation capacity and energy), we can determine how much electricity should be generated over one year: 137 MW x 0.9 x 365 days x 24 hours/day. This calculation gives 1,080,108 MWh or RECs. This is a useful result because it suggests that there could be production of sufficient RECs to cover the 880,000 that we need. In fact, the calculation suggests that we might potentially have an excess of Class III RECs, which hopefully will drive their prices down and save money for NH ratepayers.

REC producers in New England are required to register and file their REC production data with the New England Power Pool Information System (NEEPOL GIS). Some of the data is available to the public. I noted that in 2015 and 2016, 1,005,258 and 924,716 NH Class III eligible RECs were produced, respectively. This is right in line with my calculation of 1,080,108 RECs. Historically, there seem to be sufficient Class III RECs to meet NH’s needs.

However, availability does not obligate producers to sell into the NH REC market. They could, especially if prices are high, elect to sell, as in previous years, into other markets, such as the CT Class I market. If insufficient Class III RECs are available, prices will quickly rise close to the Class III ACP cap of $ 45. As a biomass RE generator, that is what I would want and I might choose to direct some of my RECs to a different market to support higher NH Class III REC prices. This is a direct consequence of our inconsistent and changing REC market in New England. It provides opportunities for good traders to play off the differences between markets—and it makes perfect business sense to do so.

However— and this is a big HOWEVER— the calculation of a surplus assumes that all operations run 90% of the time, that there are no major shut downs at any of the larger facilities, and that biomass REC producers don’t elect to sell Class III in other eligible markets. Another complicating factor is that there is legislation, known as SB129 presently making its way through the NH General Court that makes important modifications to the RPS program, especially in the Class III category. Just last week, the NH House approved a change in the RPS law that promotes NH biomass in two ways:

• It would put a 10 MW limit on the size of landfill methane operations that qualify for Class III RECs. This change appears to be directed at eliminating some of the large out-of-state landfill operations from RI and NY that have been participating in the NH Class III market.
• The ACP for Class III RECs would be increased to $ 55, which should increase the REC prices in the case of a Class III REC shortfall.

If we go back to the list of Class III operations above, I have highlighted two potential operations that may not qualify for the production of Class III RECs under the new 10 MW limit: the first is the large Johnston landfill in RI, highlighted in orange, and the second, highlighted in blue, is the Seneca landfill in NY (if its combined output is considered).  If both of these landfills are excluded, this would lead to a 36.3 MW reduction in Class III REC generation capacity, which represents an overall decrease of 26%. This would result the production of only 794,000 RECs, which is short of the 880,000 that NH needs in Class III. What are the consequences of this shortfall?  This means that the prices for Class III will climb to close to the value of the price cap (the ACP) and the shortfall will be made up by utilities having to pay the ACP.

The next question is: What are the implications of these changes to NH ratepayers? Let’s turn again to some calculations and assume that those 794,000 RECs sell for 90% of the $ 55 ACP, or $ 50, and that the shortfall of 86,000 is paid in as the $ 55 ACP. In this case, we can calculate that the Class III requirement of 8% and the higher ACP could cost NH electricity customers some $ 44 million annually. If we apply this amount over the 11 billion kWh of electricity sold annually in NH, the rates can be expected to increase by 0.4 cents/kWh. For a NH residential customer using 600 kWh per month, this could result in an annual electricity cost increase of about $ 30.

I did extend this calculation to determine a total cost for the RPS program for 2017 based on lower Class I REC prices and some significant assumptions on REC availability and prices in the other classes. My calculations led to an RPS cost of approximately $77 million which is 4.7% of the $1.7 billion I’m assuming will be paid for electricity by NH ratepayers in 2017 (based on $150/MWh ($0.15/kWh) retail rate and 11 million MWh of electricity). This is a significant increase over the 2.6% value I calculated for the 2015 RPS program in my previous post.

Now, bear in mind that these are rough back-of-the-envelope calculations; they do, however, give a sense of the potential implications for NH ratepayers of the Class III ramp up to 8% combined with the proposed RPS SB129 legislation. Perhaps I am dead wrong in my assumptions. Maybe the Class III generators will produce RECs beyond their rated capacity, perhaps not all of those highlighted out-of-state landfills will be excluded from the Class III list, and perhaps the Class III generators will choose not to sell any of their RECs into the CT Class I market. In this case, a surplus of Class III RECs will be produced, prices will be much lower, and the costs to NH ratepayer will be reduced. There is even the possibility that the PUC could jump in again to ratchet down that Class III requirement, as they have in previous years. Regardless, this is certainly food for thought as the SB129 legislation makes its way through the lawmaking machine and onto the Governor’s desk.

This is a complicated matter and it presents a huge dilemma for legislators, regulators, and the wood-burning plants in NH. On one hand, as pointed out in my post, Between a Rock and Hard Place, the NH wood-burning plants absolutely need the REC revenue and higher REC prices to survive. In fact, one such plant, the Indeck Energy plant in Alexandra, recently closed down  due to low wholesale electricity and REC prices. Alternative forms of electricity generation are also very important and wood-burning capacity helps to reduce our dependence on natural gas-fired generation. But, on the other hand, legislators and the PUC commissioners need to weigh the cost of the REC-based subsidies of the biomass industry against costs to ratepayers. There are no easy answers and these are difficult decisions to make.

Feel free to weigh in on this issue because it is a surprisingly important one. In the meantime, do your part to reduce our need for electricity from any generation source by remembering to turn off the lights when you leave the room.

Mike Mooiman

Franklin Pierce University
